Factory Electrical Construction What should be noted?

1. The process of designing and constructing the factory's electricity

• The power cable system needs to be designed with high precision to get the best performance.
• Cable tray ladder system must be designed with absolute safety. Along with that is the high aesthetic.
• The lighting system must meet enough light for the factory.
• It is necessary to have a periodic inspection schedule to ensure the safety of the system. Maintenance is required when necessary to increase product life.

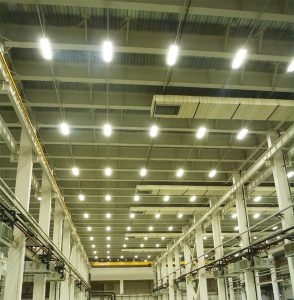

Factory Electrical system

2. Electrical construction items of the factory

2.1. Total power supply cable system

• The main shaft electrodynamic cable system is considered the most important component in the construction of the power system. It is usually led from the back of the substation, connected to the MCCB (ACB) and then into the main switchboard. The total power supply cable is responsible for powering the entire system. The main power cable can be floating or negative in the ground depending on the requirements of the investor.
• Calculation and selection of conductors suitable for capacity, total capacity of electricity use for all equipment in workshops and factories.

Some important points to note:

• It is necessary to design to clearly distinguish the phase wires so as not to be confused when using.
• It is necessary to arrange the cables neatly, in a certain order for easy maintenance or inspection when there is a problem.
• It is necessary to fix the wire to the cable tray ladder system.
• It is necessary to check and ensure the safety of the rope before putting it into use.
• When designing the ground wire, make sure it is not wet or soaked in water.

2.2. Cable Trunking

Cable tray ladder is a support system for the electrical cable system of part or the whole electrical system. Often used in factories, basements or high-rise buildings. The installation of the cable tray ladder helps to arrange the cable system neatly, increasing the aesthetics. At the same time convenient for inspection and maintenance.

Some important points to note:

• First of all, cable tray ladders must ensure safety factors. The number of support bars on the cable tray ladder must be able to withstand the load of the cable system. The support bars must be synchronous and have the same height.
• Cable tray ladders need anti-static paint as required to avoid the risk of electric leakage.
• In addition, when designing a cable tray ladder system, it must ensure that factors are easy to check and repair when there is a problem and have high aesthetics.

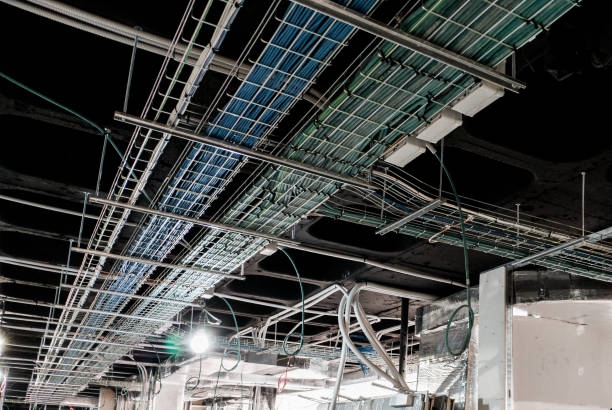

Factory cable tray

2.3. Industrial electrical cabinet

• An electrical cabinet is a place where the electrical cable ends of the entire system or of certain parts in the entire electrical system are gathered.
• Allows monitoring and control of electrical systems easily.

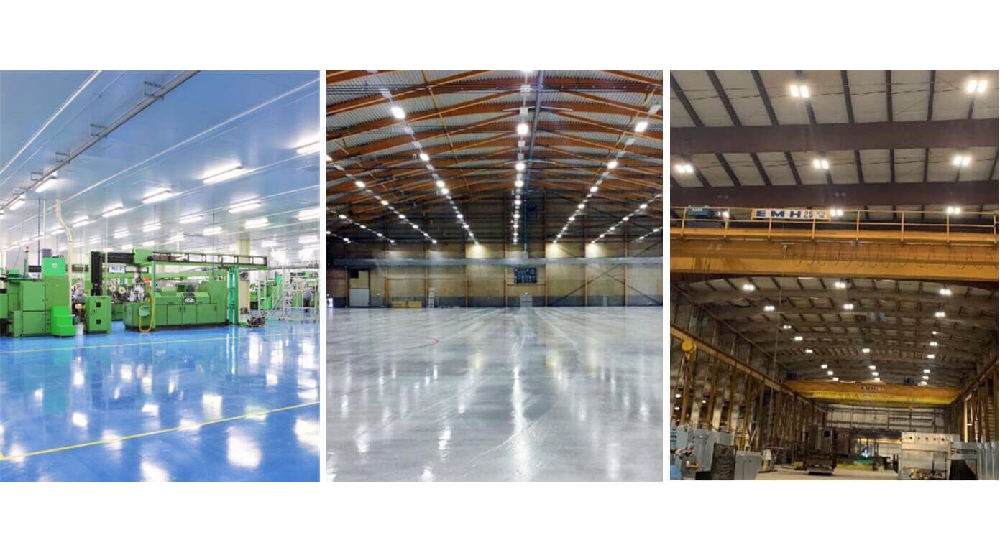

2.4. Light electrical system for the factory

• With any factory or factory, it is indispensable for the lighting system. The lighting system is extremely important in ensuring the plant operates day and night.
• Depending on the requirements of each different manufacturing plant, the design of auxiliary light electrical systems is also different. To maximize the production and operation needs of the factory.

Some important points to note:

• Depending on the area in the factory, you will choose the appropriate lighting for it.
• Clearly define the need for light intensity, light color and other requirements on the level of suitability for each production workshop.

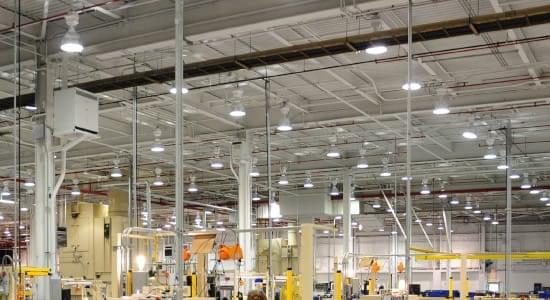

Factory electronical system

3. Criteria for evaluating electrical systems for factories

• The intensity of the current must ensure the capacity for the equipment and machinery to work properly.
• The electrical system must meet the standards to ensure safety for users according to current regulations.
• Ensure the aesthetics of the space and must be constructed intelligently.
• Construction solutions need to save investment costs. At the same time, it must be convenient for expansion, if any.

4. Which unit should I choose for the electrical construction of the factory?

Sumitech (SMI) has more than 12 years of development in the field of construction and installation. Choosing a unit like us for electrical construction of the factory is completely reasonable. SMI has a team of professional engineers and technicians with many years of experience in the profession. We will meet all requirements and will make you satisfied. Both in terms of price and professional working style.

We will design free 3D drawings to clearly show the construction plan. This helps customers who do not have high technical expertise to understand the project well. Sumitech's working process includes the following steps:

• Get information about customers' electrical items.
• Our engineer will come directly to survey the current status of the project.
• Survey reports, design drawings, workload and quotes for customers.
• Sign the contract, complete the construction according to the work plan.
• Project acceptance and handover.
